Cheap oil temperature gauge for car

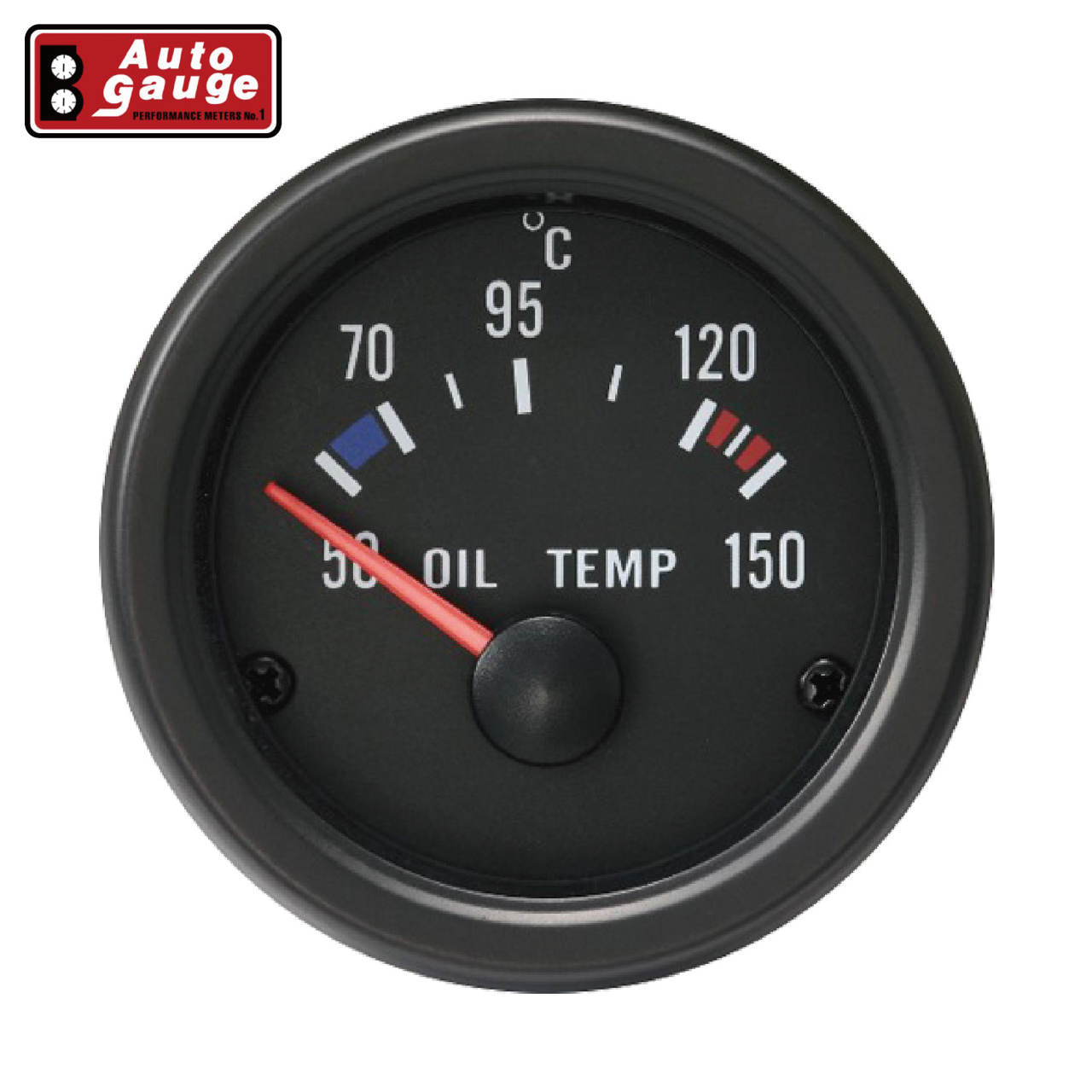

Here you get a really cheap oil temp gauge that is neutral and can be placed inside the cabin. With this oil temprature meter you can measure from 50 - 150 degrees. The oil temp gauge is black with white font and a red indicator.

Mounting of oil temperature gauge

It is very simple to install an oil temp meter, you need 12v ignition plus plus a frame from the car. A small temperature sensor is included in the bottom of the engine. You can also sit it at the oil pressure switch or similar. where there is oil, but it is not as accurate as when installed in the bottom vessel. The thread is 1/8 NPT -27. It is a good idea to use logtite or other sealant when mounting the sensor itself. Placement with an instrument holder is very easy and can be mounted quickly. You will find the instrument holder further down the page.
