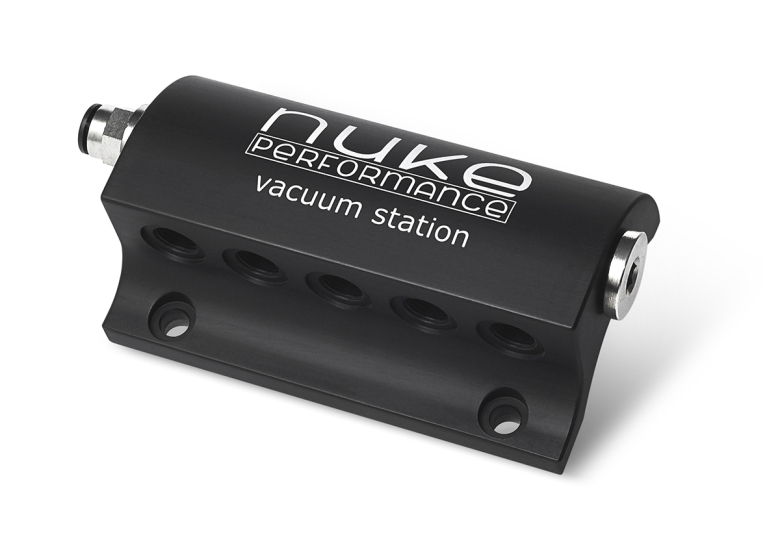

Vacuum Station 5 outlets - Nuke Performance

The body is CNC-machined from aluminum alloy 6082, anodized and laser engraved for long-lasting appearance and function.

Often used when using many parts that all need to be connected to the manifold, perfect for connection of fuel pressure regulator, blow off valve, fuel pressure gauge, fuel pulse dampers etc.

For use on turbo- super-charged engine applications.

Delivered with 1x 1/4 BSPP Pneufit quick connect fitting and 1x 1/4 BSPP Plug. The additional fittings are sold separately.

Thread size for the output ports are 1/8 BSPP and are sold separately due to the wide variety of different needs. We recommend the Nuke Performance 1/8 BSPP Pneufit quick connect fittings to be used with this Vacuum Station.

Technical information:
• Aluminum extrusion from 6082-T6.
• The end thread is 1/4 BSPP.
• The outlet thread is 1/8 BSPP.
• Delivered with 1x 1/4 Pneufit Quick Connect fitting and 1x 1/4 Plug.
• Laserengraved.

Measurements:
Height : 60 mm
Width : 119 mm
Depth : 35 mm
Weight : 303 g
