Universal Dual Pass bar & Plate Oil Cooler - Large - Sort - AN10 - High Flow

Manufacturer: Quality - Low cost

Dual pass oil cooler Large.

SKU: 1.00313.05-Oilcooler

Stock status explained
In stock	We have this item in our warehouse
Out Of stock	We do not have this item in our warehouse but we can order it for you
On the way to us	We ordered this item for expected delivery and quantity please see above

€117,29 incl tax

Qty:

i h

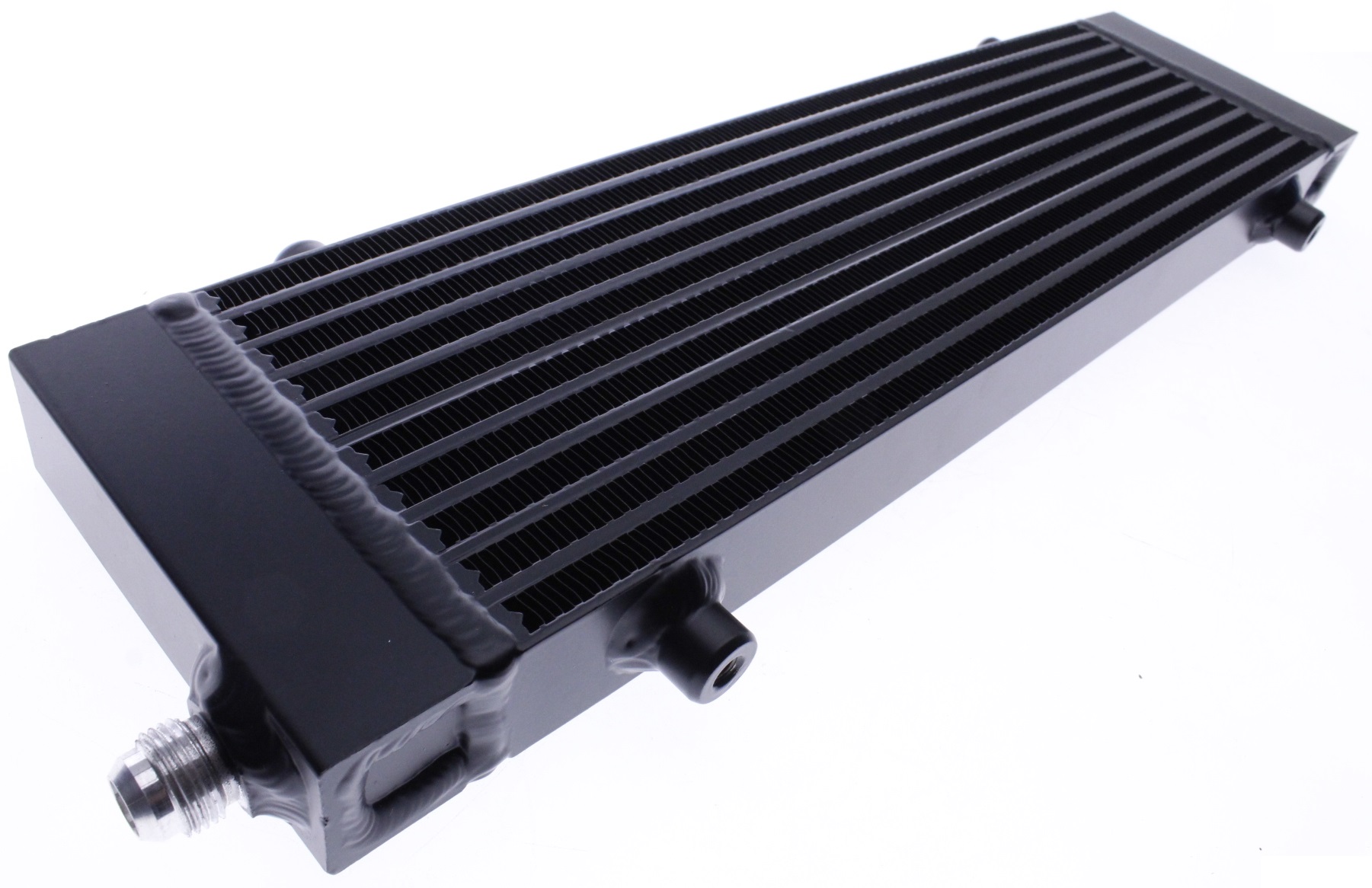

Universal Dual Pass bar & Plate Oil Cooler - Large

This oil cooler is made with connection in each end. Make the flow double if it is placed in each same end.

Core height: 140mm

Core thichkness: 39,9mm

Core size: 465x140mm

Overall Height: 160mm

Overall length: 577mm

Overall width: 39,9mm

Volume capacity: 0,546L

Inlet / Outlet: AN10

M8x1.25 welded bungs to use for attaching brackets.

Strength test: 15 bar

Air tightness test: 11 bar

Products specifications

SIze	AN10
