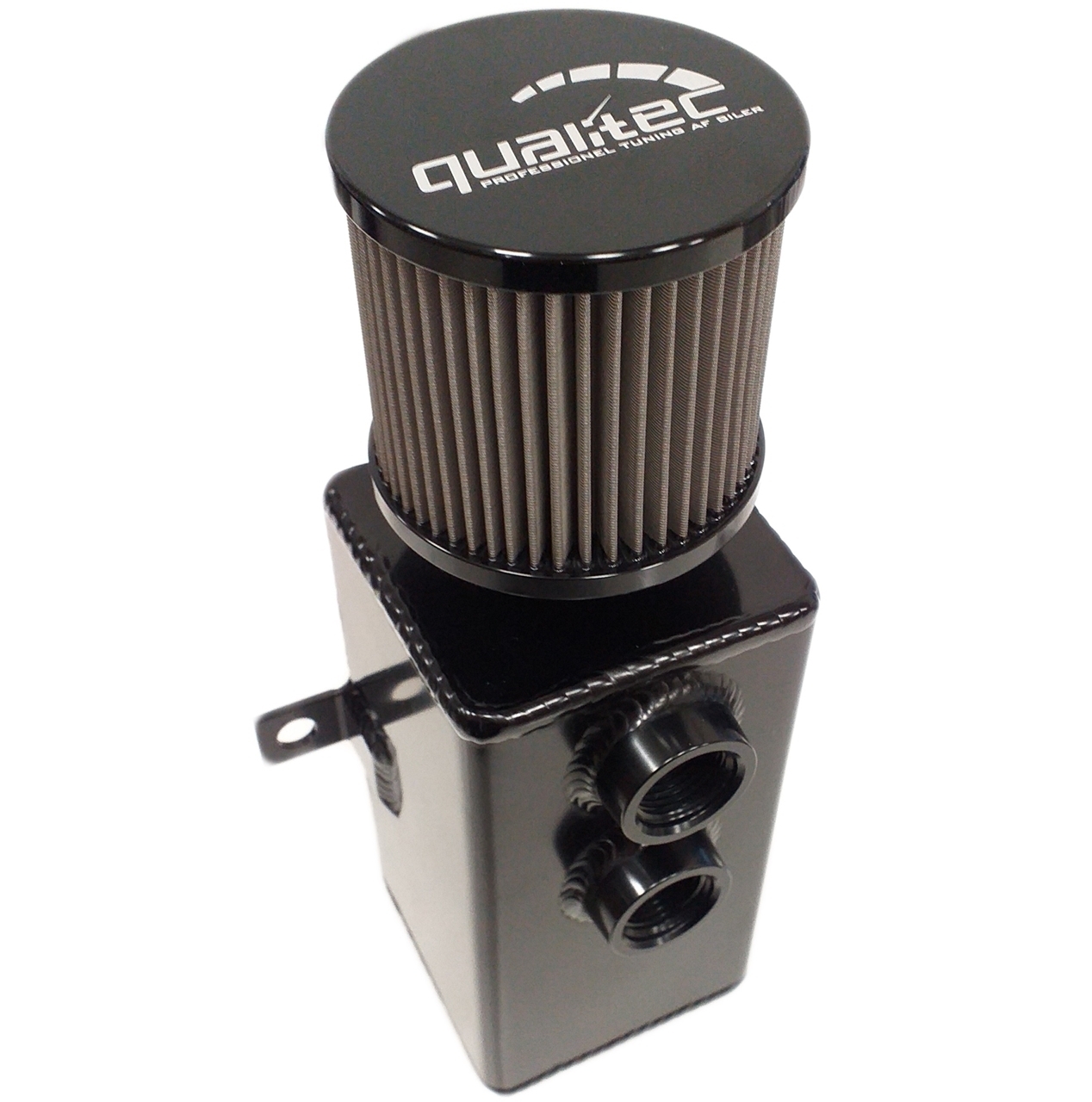

Qualitec performance catch tank

Top quality Catch tank with vent filter. Inside the tank, a cover plate is mounted to prevent oil droplets from flowing directly into the filter. There is a drain at the bottom of the tank which can be loosened with a thumbscrew. The filter is made of the highest quality stainless steel material. You can move the filter as it is turned down over an AN12 connection.

Medium 1 liter
Total height: 295mm.
Height of tank itself: 160mm.
Wide without fittings: 82mm.
Wide with fittings: 132mm.
Depth: 82mm.

Big 1,8 liter
Total height: 295mm.
Height of tank itself: 160mm.
Wide without fittings: 110mm.
Wide with fittings: 160mm.
Depth: 110mm.

Grande 3,5 liter
Total height: 390mm.
Height of tank itself: 250mm.
Wide without fittings: 120mm.
Wide with fittings: 170mm.
Depth: 120mm.

Thread type at 2 pcs. inputs: AN10 O-ring (7/8 "x18 SAE UNF)
