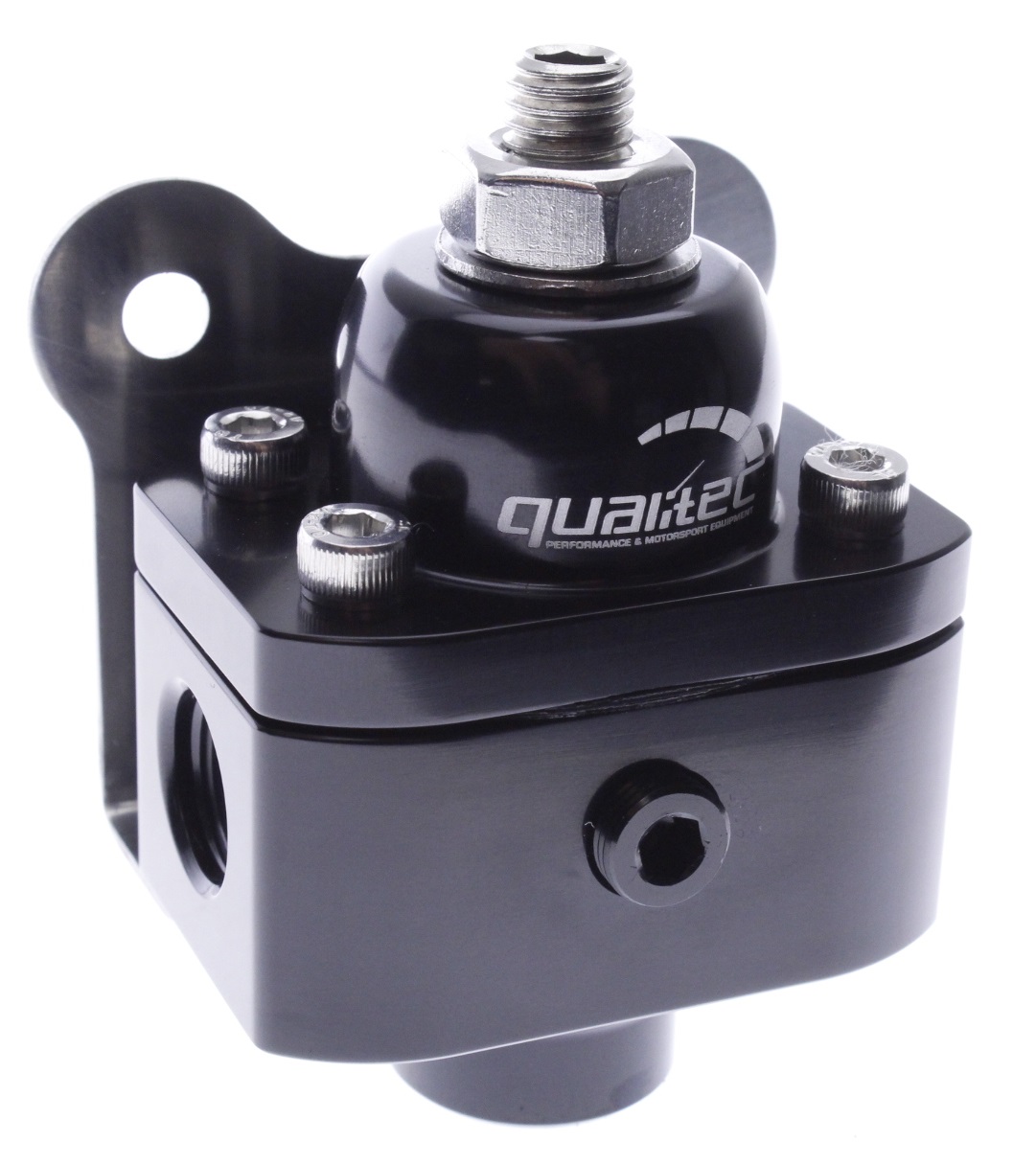

Universal gasoline pressure regulator for curator, Weber, dellorto

Very nice regulator for carburetor. Brackets included for mounting. Adjustment screw at the top.

Adjusted between 0.3-1.0 bar pressure

Mounting with 3 x AN6 fittings (AN6 O-ring (9/16 "x18 SAE UNF)

The fuel pressure regulator is made with 2 outputs (in the side) for the carburetor, this is used when you have, for example, a V8 engine with a carburetor that has 2 chambers. Inlet at the bottom.

This carburetor must use a gas pump that does not produce overpressure, ie one that is specially made for carburetor.

If you want to use only one input, you can buy a plug (AN6)

E85 & Alcohol compatible
