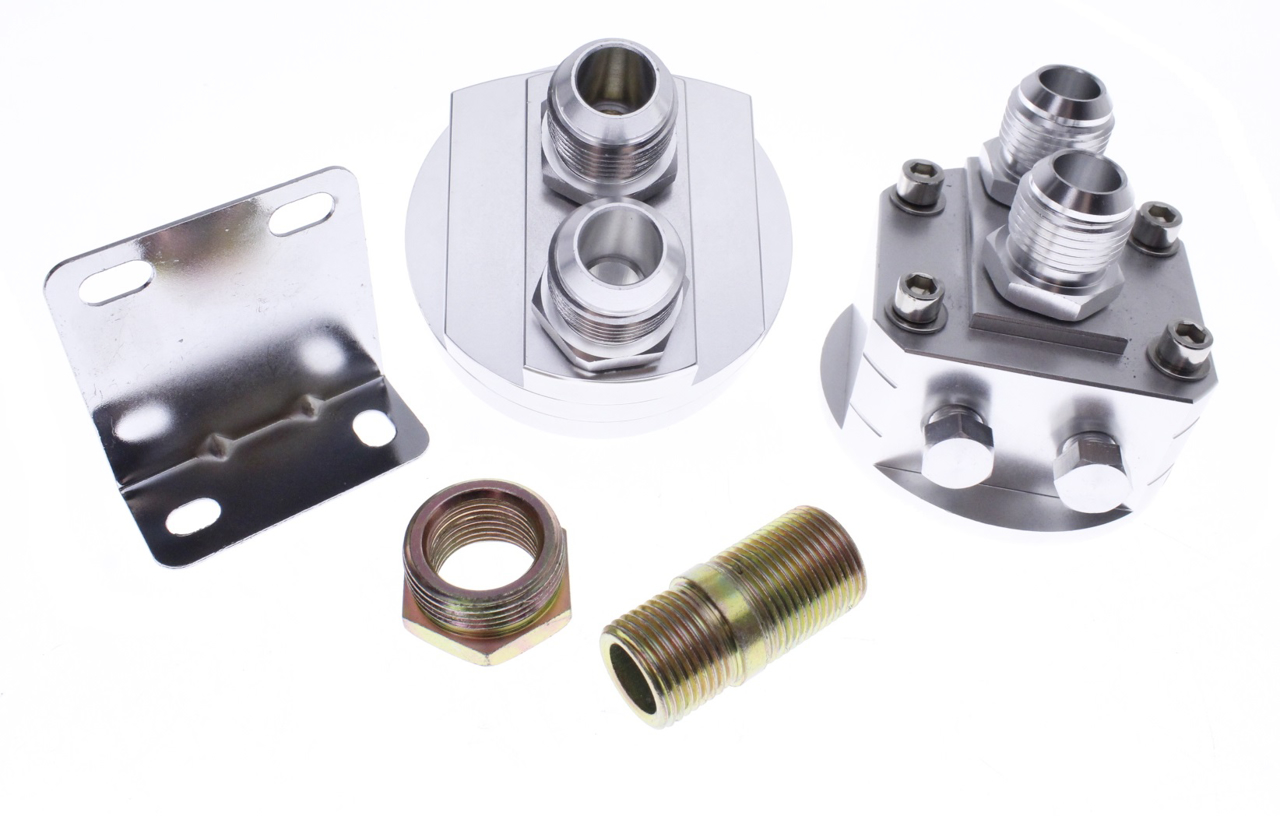

    Oil cooler relocation - AN10 - All Silver

    Manufacturer: Quality - Low cost
    Quality oil cooler relocation. AN10 fittings are included for this relocation.
    SKU: 1.00112.01-MP-OA0506

    Availability 4 in stock

    New stock on its way from supplier: 10
    Expected delivery date: september 07, 2024
    €56,96 incl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Oil cooler relocation - AN10

    Oil filter relocation placed between engine block and oil filter.

    Threaded pieces are included for the socket which is inserted on the block which is 20x1.5mm and JIC 3/4 UNF.

    Use oil filter with M20x1.5 thread.

    Height from block

    Without nipples: 40mm.
    With nipples: 67mm.
    With 90 degree Forge AN fittings: 112mm.

    O-ring diameter:

    There are 2 rings on the flange towards the engine.

    O-ring 1: 59 / 65mm.
    O-ring 2: 67 / 75mm.
    Clamping surface for oil filter 55-78mm.

    JIC 3/4 UNF
    VW, Renault Alpine, Opel, Ford, BMW

    M20x1,5
    Honda, Subaru, Peugeot, Citroen, Renault, Mazda, Mitsubishi, Nissan.

    Oil relocation is typically used in connection with the installation of oil coolers.

    *
    *
    *
