MSD HVC-2 Coils 8261

Manufacturer: All IN Performance

Be the first to review this product

Ignition Coil, Blaster HVC-2, U-Core, Drag Race, Square, Epoxy, 45,000 V

SKU: 1.00129.03-8261

Availability 2 in stock

Stock status explained
In stock	We have this item in our warehouse
Out Of stock	We do not have this item in our warehouse but we can order it for you
On the way to us	We ordered this item for expected delivery and quantity please see above

€502,78 incl tax

Qty:

i h

Overview
Reviews
Contact Us

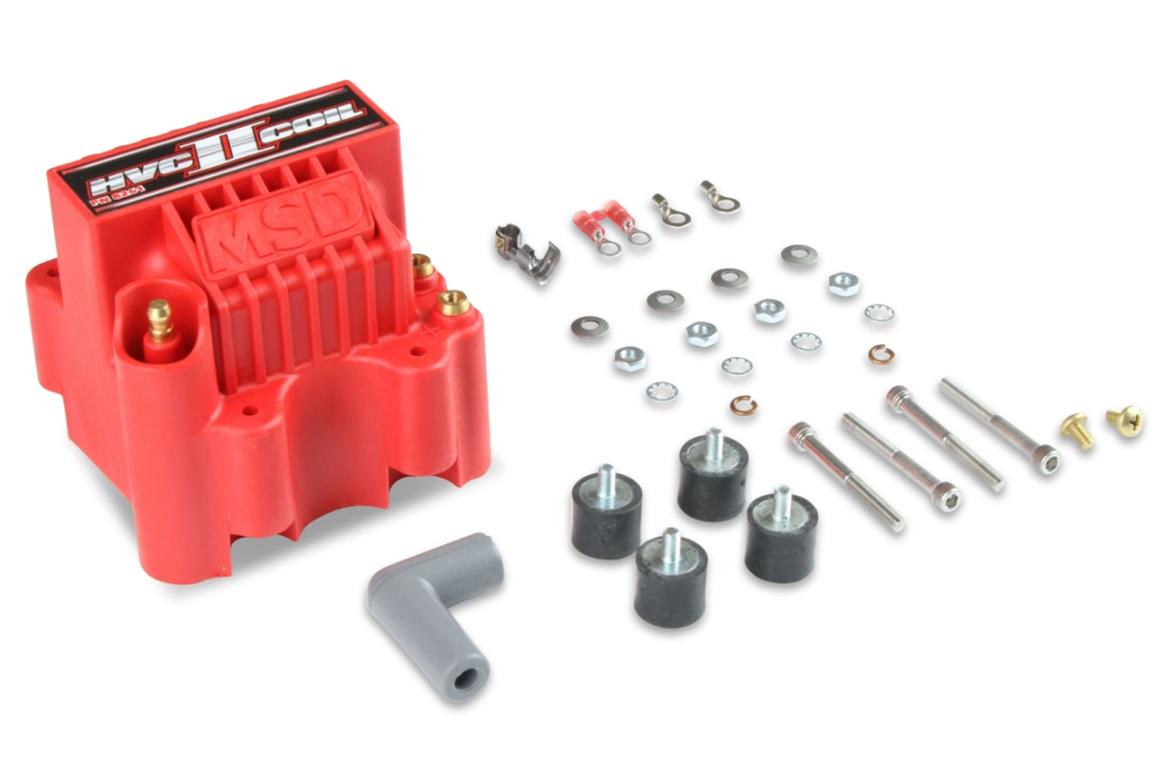

MSD HVC-2 coils utilize an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material. That means it has incredible dielectric capabilities at high temperatures. The housing features far-spaced brass primary terminals, and a well-protected secondary tower for increased spark isolation. HVC-2 coils are designed for use with MSD 7 Series ignitions.

Primary Resistance:

0.016 ohms

Secondary Resistance:

30.00K ohms

Maximum Voltage:

45,000 V

Inductance:

0.25 mH

Peak Current:

2 amps

Spark Duration:

150 uS
