Innovate Motorsport MTX-L PLUS AFR gauge
This is a mixer where everything is built into the clock. Ie you just have to turn on the clock and the whole system works. Not like other mixers where there is an external module to be connected. This makes it very easy to assemble. In addition, this watch is waterproof so it can be used for boats etc. There are still 2 programmable outputs, they are linear and can be used for retrofitted motor controls such as Megasquirt or data logger.
The new MTX-L PLUS broadband meter features our patented DirectDigital ™ technology and brand new Advanced Sensor Control, which receives feedback from the sensor more often and optimizes the heater. The combination of these technologies makes the MTX-L Plus our fastest, most durable and accurate air / fuel gauge ever!
• FASTER Sensor Frequency for faster O2 sensor feedback
• FASTER analog output speed helps ensure that your ECU sees changes in air / fuel conditions as they occur
• ENHANCED Heater Control for superior sensor performance in forced induction and other high performance applications
• Large digital readout and programmable "Digital Needle" provide the functionality of a needle gauge with the accuracy of a digital screen
• Digital display in AFR or Lambda 52mm (2 1/6 ") diameter measuring housing with included interchangeable front plates and brackets Bosch ™ LSU 4.9 Broadband O2 Sensor Patented 100% digital broadband air / fuel ratio technology!
• Ability to calibrate O2 sensor for maximum accuracy
• Wideband O2 compatible with multiple fuel types
• Innovate MTS Serial In / Out (for use with MTS enabled devices to add additional logging channels)
• Database using powerful LogWorks software on your PC

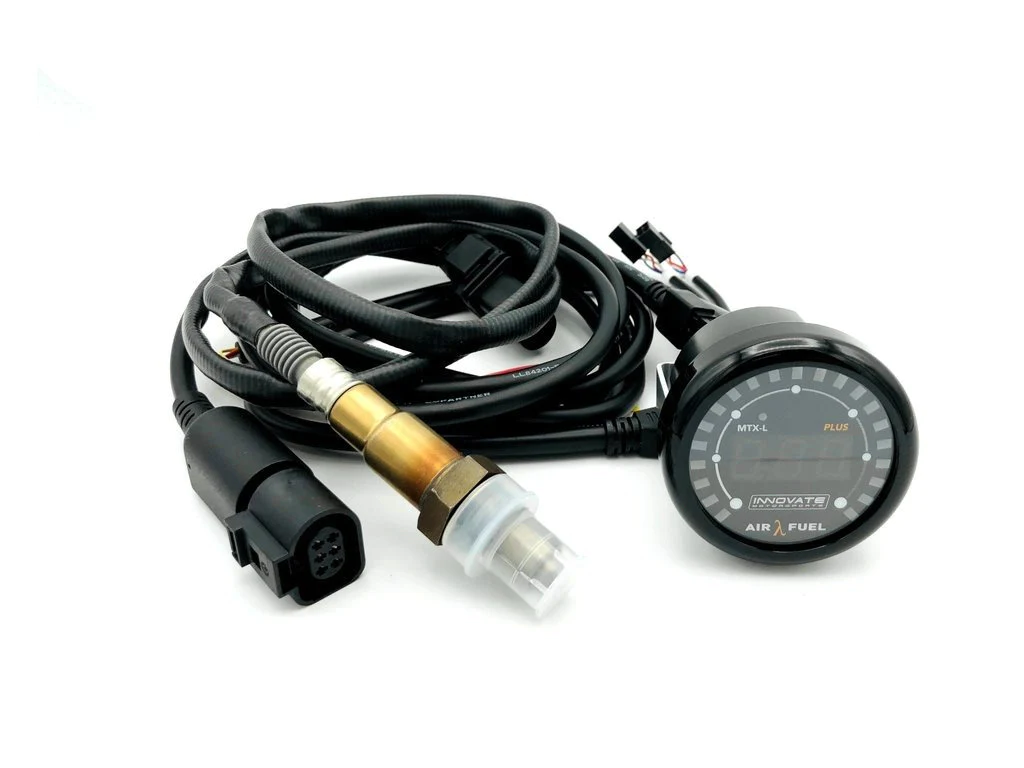

MTX-L PLUS: Digital Wideband Air / Fuel Ratio Gauge Kit (8 Ft.) - Includes: Gauge, Silver Bezel, Black Bezel, White Faceplate, Black Faceplate, LSU 4.9 Wideband O2 Sensor, 8 Ft. Sensor cable (total length 10 ft.), 1 "Exhaust fittings, Program cable and Manual.
There is 0-5 volt output in this AFR watch, so you can put it together with motor control such as Megasquirt.
