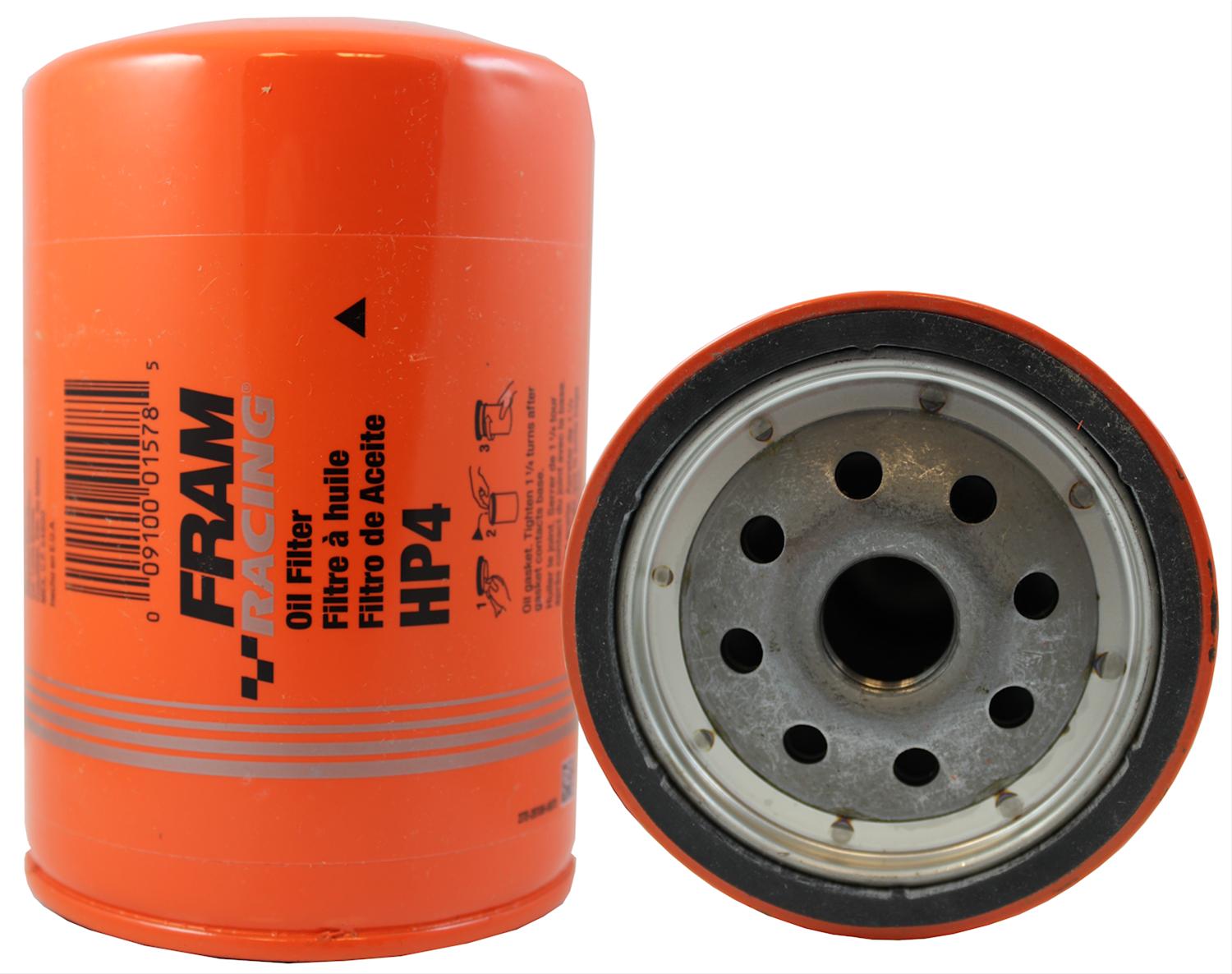

Fram HP Series Oil Filters HP4 - Thread Size: 13/16 in.-16

Be the first to review this product

Oil Filter, HP Series, 13/16-16 in. Thread, 5.75 in. High

SKU: 1.00342.02-HP4

Availability 1 in stock

Stock status explained
In stock	We have this item in our warehouse
Out Of stock	We do not have this item in our warehouse but we can order it for you
On the way to us	We ordered this item for expected delivery and quantity please see above

€41,88 incl tax

Qty:

i h

Overview
Reviews
Contact Us

Fram HP Series Oil Filters

For maximum performance and durability on the street or at the track, trust Fram HP Series oil filters. They offer twice the oil flow rate and four times the dirt-holding capacity of standard oil filters. Their extra-thick steel cans and heavier gauge tapping plates are designed to withstand the high pressures and flexing caused by demanding driving conditions. Tough steel end caps hold a spiral-shaped center tube to offer more durability and protection against collapse. Fram HP Series oil filters are compatible with all oil types and have been optimized for racing and high performance street cars.

Additional features include:

* Low-restriction racing media designed for high oil flow
* 94 percent efficiency at 20 microns
* Silicone anti-drainback valve on many applications
* 10 to 18 gpm recommended maximum oil flow, depending on model
* Maximum burst pressure: 350 to 500 psi, depending on model
* Maximum operating pressure of 200 psi
* Screen over bypass valve for extra protection against large contaminants
* High-flow bypass valve
* Flanged steel end caps

Smallest Particle Filtered:

5 microns

Thread Size:

13/16 in.-16

Height (in.):

5.750 in.

Outside Diameter (in.):

3.719

Filter Bypass Relief Valve:

Yes

Anti-Drainback Valve:

Yes

Relief Valve Open (psi):

22 psi

Maximum Burst Pressure (psi):

500 psi

Gasket Outside Diameter (in.):

3.469

Gasket Inside Diameter (in.):

3.063

Gasket Thickness (in.):

0.344 in.
