Electronic control - turbo pressure or vacuum valve

Electronic control - turbo pressure or vacuum valve

This control can be used with all valves that are operated by turbo pressure or vacuum.

Up to two valves can be connected.

Activated with turbo pressure or vacuum

Choose a valve that opens the valve at charge pressure or vacuum. This one you can mount it directly on the exhaust and it will open as soon as charging pressure comes or you give it vacum. Easy to install, even without control, simply pull a silicone hose from the engine compartment. It opens with charge pressure as soon as the turbo gives pressure and is fully open at 0.2 bar pressure.

You can advantageously use Y-piece for exhaust to make distribution / outlet from the exhaust. You can also use this Split muffler if you want it to sit right after a muffler under the car. If you want to make a split output on your exhaust yourself, you can use stainless steel tubes to build it with.

If you want to make it easy to disassemble and install the system you can buy our v-band flanges or connector for exhaust .

The wires must be mounted as follows:

Red - 12v ignition plus

Black - Frame

Yellow - Yellow cable at valve

If - Blue cable at valve

You can use this below:

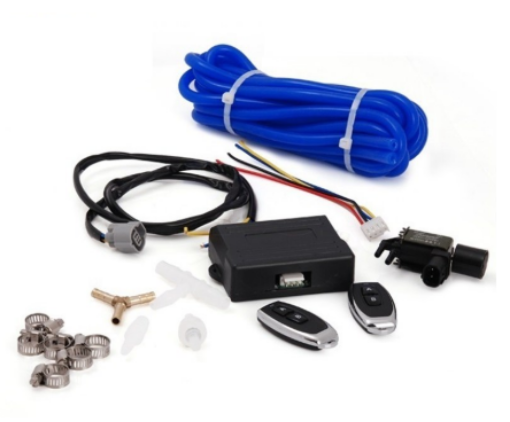

1 piece. Electronic control for the valves
(Remote control, vacuum hose, control wiring, control box, 3 way valve)

1 piece. High Flow  valve
Here you can freely choose a valve according to your needs - We recommend this: Closed - Opens with vacum. With this you can open and close it as you please.

1 piece. Y-piece for mounting the electronically controlled exhaust valve.

Choose one of our y-pieces.
